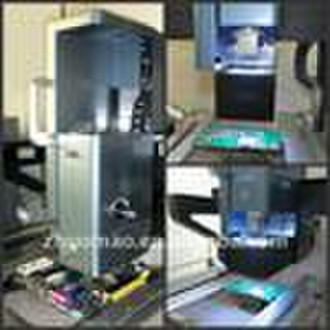

Vision ZM-R6821 Bga Rework Station

ZM-R6821 Bga rework station Specifications 1Power consumption5800W 2Top heater800W 3Bottom heaterInfrared plate 4200 W - Nozzle 800 W 4Power requirementSingle phase AC 220V ± 10% - 50 Hz – 5.8 kVA 5DimensionsL800×W700×H1000mm 6PositioningV-clip PCB clamping | 10 20 μm X-Y table adjust. 7Temperature controlImported K-type thermocouple (Closed Loop) ±3-5°C 8PCB size22×22mm to 400×450mm 9Camera magnification10x to 100x 10Weight130 kg Features:Features: 1.This touch screen controlled desktop rework station is the most compact of our high range equipment. Password protects the data. The temperature profile chart can show 7 profiles at any time. 2.With 5 high precision thermocouple, the temperature can be precisely controlled within a 2°C range by the PLC. 3.With 6 programmable temperature zones, preheat, ramp up, reflow, solidification and cooling can be precisely adjusted. 4.100 profiles can be recorded within the machine and flexibly created and modified through the touch screen interface. 5.Heating and placing head’s unique combined design, allows flawless placing and soldering. X,Y and Z axis are driven by step-motors. The software can remember 100 groups of coordinates. 6.The 3 temperature zones are controlled independently by the software. Preheating the PCB with infrared plates can avoid deformation and guarantees precision of soldering. 7.Use a powerful cross-flow fan to cool PCB rapidly to prevent it from deformation and ensure the welding effect. 8.Use a V-groove equipped with a flexible fixture for PCB positioning to protect the PCB. 9.The touch screen controls the upper heating system and the optical device. Is is very easy to operate. 10.The top and bottom heating head can move freely on the infrared plate so that BGA can be repaired on different areas of PCB. 11.The machine is equipped with Japan imported vacuum pump. 12.The CCD camera can simultaneously observe the component picked up by the nozzle and the pad on the PCB. The color sensitive focal positioning system can achieve a matching accuracy of 10 to 20 µm. 13.The operator can supervise the process on a split screen 17” monitor. 14.The high degree of automation achieved with this model minimizes the risk of human error. 15.This equipment completely meets the requirements of lead-free process.
